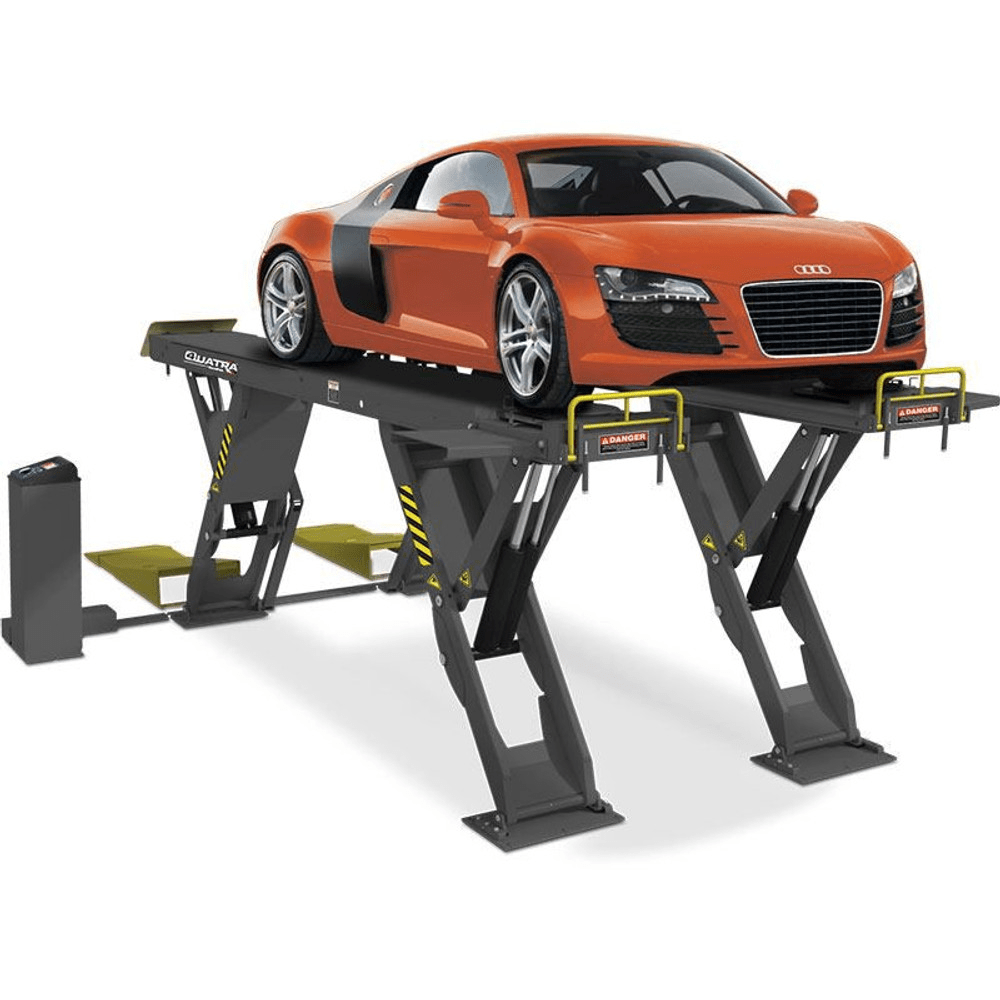

BENDPAK XR-12000AL 12,000 lbs Capacity Quatra Pantograph Alignment Lift – Extended

Quatra XR-12000AL — Raise the Standard of Alignment

The BendPak Quatra XR-12000AL is a revolutionary alignment lift offering a true vertical rise and 12,000-lb. lifting capacity in a compact footprint. Its quad-opposing pantograph scissor design eliminates bulky arms for unmatched vehicle access and a wide-open work area—ideal for high-volume shops with limited space.

Engineered for four-wheel alignments and general service, the extended-length runways, full-floating front radius plates, and oversized rear slip plates accommodate everything from compact cars to full-size trucks. Compatible with all leading 3D and camera alignment systems.

Unlike traditional scissor lifts, the Quatra’s vertical lift keeps your bay layout tight, while the open-front, rear, and sides ensure unobstructed entry, exit, and adjustments. Rapid lifting speeds, a simple hydraulic control system, and smart manifold technology deliver precise, equalized runway movement without complicated electronics.

Exclusive approach ramps extend, hinge, collapse, and stow to handle low-profile vehicles and tight spaces—an industry first. All key components are enclosed within the runways for maximum protection and durability.

Key Features:

• 12,000-lb. capacity with vertical lift

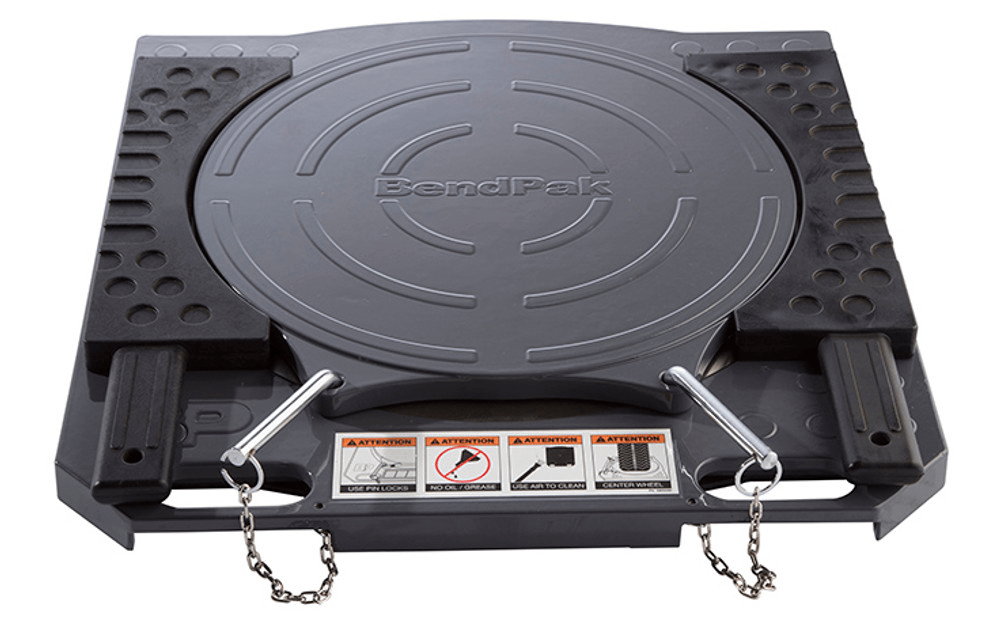

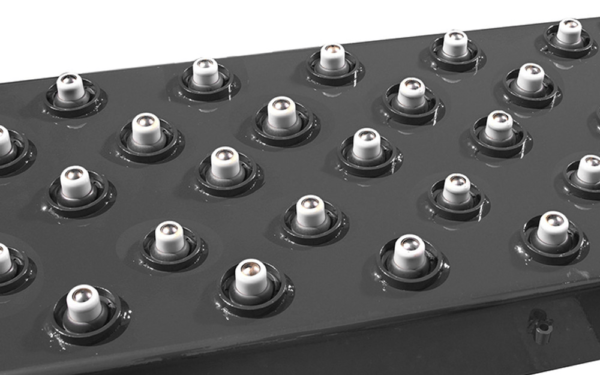

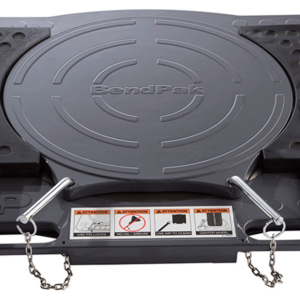

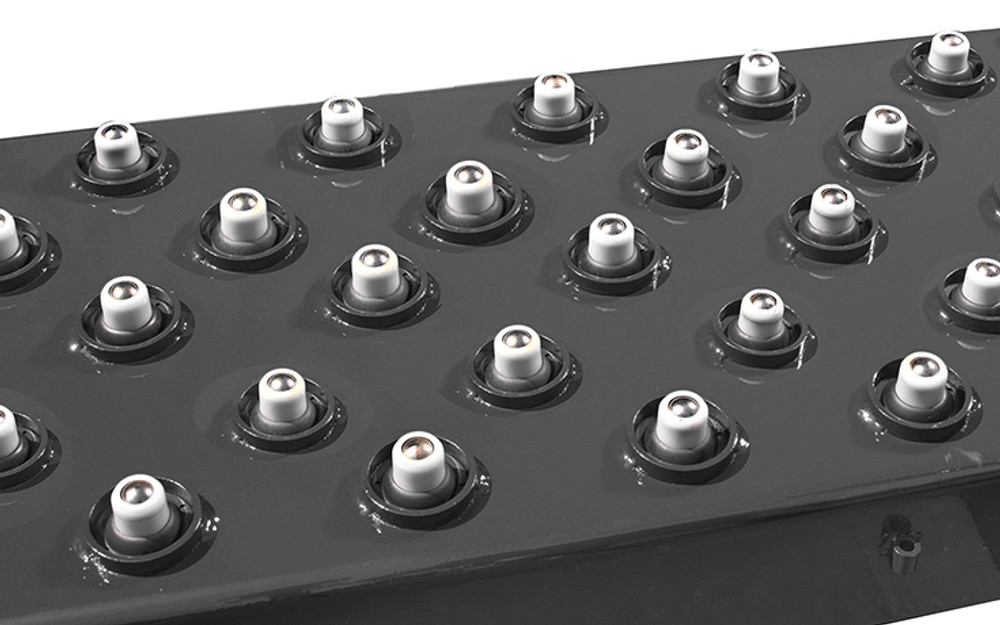

• Recessed full-floating radius plates & oversized slip plates

• Compact, open design for better access and bay flexibility

• Extendable/stowable approach ramps

• 14 locking positions, fast rise/descent

• Hydraulic manifold with equalized lifting

• Optional 6,000-lb. rolling jacks and integrated airline kit

The Quatra XR-12000AL isn’t just better—it’s BendPak better: purpose-built for productivity, precision, and long-term performance.
